BROADBAND BAROMETERS

   Products
Model 216B Frequency Outputs
Model 1000-16B RS-232 & RS-485 Bi-Directional Interface
Model 6000-16B RS-232 & RS-485 Bi-Directional Interface
MET4 Meteorological Measurement System
MET4A Fan-Aspirated Meteorological Measurement System
Model 745-16B High Accuracy Laboratory Barometric Standard
Model 765-16B High Accuracy Portable Barometric Standard
   Applications

The Digiquartz® Barometers are used in a variety of precision Meteorological applications.  The Model
745-16B and Model 765-16B are used as transfer standards in laboratory and field applications. These standards have been used in an international calibration and intercomparison study originated by the Norwegian Meteorological Institute (DMNI).  Additionally, barometers have been submitted to an ongoing stability test.  Median drift rate of the units was -0.007 hPa (-0.0002 in Hg) per year. Pressure hysteresis tests showed a mean hysteresis less than 0.001 hPa.

Frequency output transducers can be connected to an intelligent electronic card to make a system capable of RS-232 and RS-485 operation.

A two line LCD digital display, the Model 715, can be connected to all new Paroscientific transmitters with
RS-232 and RS-485 outputs to provide digital readout of pressure, temperature, engineering units, overpressure warning, tare indication, user defined messages and a horizontal bar graph showing percentage of full-scale pressure.

Click here for the details of Barometric Standards Applications

Click here for Broadband Barometers Datasheet

    Model 216B - Frequency Output Pressure Transducers



  • 0.0001% Resolution
  • ±0.08 hPa Accuracy
  • High Reliability and Stability better than 0.1 hPa per year
  • Integral Shock Mount
  • Fully Calibrated and Characterized Quartz Crystal Frequency Outputs
  • Low Power Consumption
  • NIST Traceable - ISO 9001:2000 Quality System
  • Free zero adjustment
  • Optional High Performance Pressure Port Available (DigiPort)
  • Click here for a data sheet
   Model 1000-16B - RS-232 and RS-485 Output Pressure Transmitters

   Model 6000-16B - RS-232 and RS-485 Output Pressure Transmitters

Series 6000

   Meteorological Measurement Systems - Pressure, Temperature, Humidity

MET4

Model MET4 Meteorological Measurement  System
Performance:
  • Pressure Accuracy better than ±0.08 hPa from 500 to 1100 hPa
  • Temperature Accuracy better than ± 0.5 deg C over -50 to +60 deg C
  • Relative Humidity Accuracy better than ± 2% at 25 deg C
Features:
  • Radiation Shield and High Performance Pressure Port (Wind Insensitive)
  • RS-232 and RS-485 Bi-Directional Interface
  • User Selectable Parameters Including Resolution, Update Rate, Engineering Units, Sampling Commands etc. with Supplied Software
  • LED Status Indicators (Power, Transmit, Receive)
  • Optional Barometric Functions and/or Data Logging
  • 3 Year Long-term Stability Warranty
  • Interfaces with GPS Receivers, External Data Loggers and Computers
  • Free zero adjustment
  • Click here for a data sheet

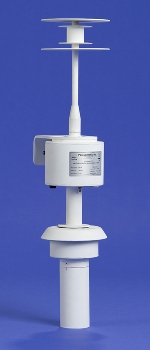

Model MET4A - Fan Aspirated Meteorological Measurement System




Fan- Aspirated MET4A

Performance:
  • Pressure Accuracy better than ±0.08 hPa from 500 to
    1100 hPa
  • Temperature Accuracy better than ±0.2 deg C from -50 to +60 deg C
  • Relative Humidity Accuracy better than ±2 Percent from 0 to 100 %RH at 25 deg C.  Rapid Humidity Recovery Time after Saturation.
Features:
  • Fan-Aspirated Probe System
  • High Performance Pressure Port (Wind Insensitive)
  • RS-232 and RS-485 Bi-Directional Interface
  • User Selectable Parameters Including Resolution, Update Rate, Engineering Units, Sampling Commands etc. with Supplied Software
  • LED Status Indicators (Power, Transmit, Receive)
  • Optional Barometric Functions and/or Data Logging
  • 3 Year Long-term Stability Warranty
  • Interfaces with GPS Receivers, External Data Loggers and Computers
  • Free zero adjustment
  • Click here for a data sheet

   Model 745-16B High Accuracy Barometric Standard

  Model 765-16B High Accuracy Portable Barometric Standard



  • ±0.08 hPa Accuracy
  • 0.0001% Resolution (<1 microbar)
  • 500-1100 hPa Pressure Range
  • 3 year Stability Warranty (0.1 hPa/year )
  • NIST Traceable - ISO 9001:2000 Quality System
  • 2 Line User Configurable Display
  • Battery or AC Powered
  • Front panel Tare, Hold, Units and Programmable Fast Keys
  • Integral data logger
  • Altimeter Setting, Station Pressure, Field Pressure, Sea-Level Pressure, Density Altitude, Pressure Altitude, QNH, QFE and WMO Pressure Tendency Codes
  • RS-232 and USB Interfaces
  • Free zero adjustment
  • Optional High Performance Pressure Port Available (DigiPort)
  • Click here to see the details
  • Click here for a data sheet
